Radial Tree

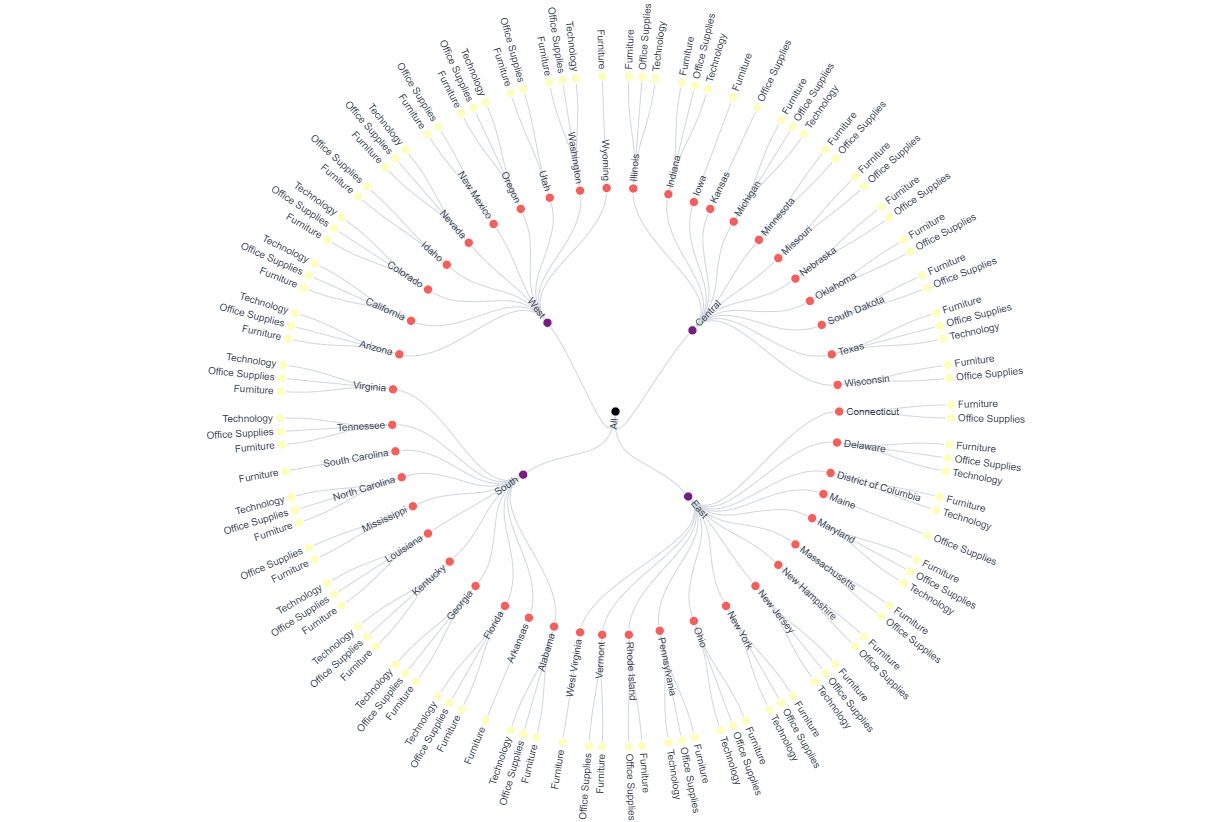

A radial tree draws hierarchical data as a node-link diagram fanning out from a central root, with depth shown by distance from the center.

  • Good for: category taxonomies (subcategory under category under department), org structures, or any nested grouping shown as a branching shape across 1-3 levels.
  • Not great for: part-to-whole sizing (use a Treemap or Sunburst Chart, which size nodes by value), flat (non-hierarchical) data, or deep trees with more than three levels.

Syntax​

Use the following AML definition to add the Radial Tree to your custom chart library.

CustomChartDef radial_tree {
  label: 'Radial Tree'
  description: 'To draw a hierarchy of level columns as a radial node-link tree.'

  fields {
    field level_1 {
      label: 'Level 1'
      type: 'dimension'
      sort {
        apply_order: 1
        direction: 'asc'
      }
    }

    field level_2 {
      label: 'Level 2'
      type: 'dimension'
      sort {
        apply_order: 2
        direction: 'asc'
      }
    }

    field level_3 {
      label: 'Level 3'
      type: 'dimension'
      sort {
        apply_order: 3
        direction: 'asc'
      }
    }
  }

  options {
    option root_label {
      label: 'Root label'
      type: 'input'
      default_value: 'All'
    }

    option layout {
      label: 'Layout'
      type: 'select'
      options: ['tidy', 'cluster']
      default_value: 'tidy'
    }

    option link_shape {
      label: 'Link style'
      type: 'select'
      options: ['line', 'curve', 'diagonal', 'orthogonal']
      default_value: 'curve'
    }

    option spread {
      label: 'Angular spread (degrees)'
      type: 'select'
      options: [180, 270, 360]
      default_value: 360
    }

    option show_labels {
      label: 'Show labels'
      type: 'toggle'
      default_value: true
    }

    option color_scheme {
      label: 'Color scheme (by depth)'
      type: 'select'
      options: ['blues', 'teals', 'greens', 'purples', 'viridis', 'magma']
      default_value: 'blues'
    }
  }

  template: @vg {
    "$schema": "https://vega.github.io/schema/vega/v5.json",
    "signals": [
      {
        "name": "width",
        "init": "containerSize()[0] - 10",
        "on": [{ "events": "window:resize", "update": "containerSize()[0] - 10" }]
      },
      {
        "name": "height",
        "init": "containerSize()[1] - 10",
        "on": [{ "events": "window:resize", "update": "containerSize()[1] - 10" }]
      },
      {"name": "originX", "update": "width / 2"},
      {"name": "originY", "update": "height / 2"},
      {"name": "radius", "update": "max(20, min(width, height) / 2 - 70)"},
      {"name": "extent", "update": "@{options.spread.value}"},
      {"name": "rotate", "value": 0},
      {"name": "labels", "update": "@{options.show_labels.value}"},
      {"name": "layout", "update": "'@{options.layout.value}'"},
      {"name": "links", "update": "'@{options.link_shape.value}'"},
      {
        "name": "hovered",
        "value": null,
        "on": [
          {"events": "@nodes:mouseover", "update": "datum.node_id"},
          {"events": "@nodes:mouseout", "update": "null"}
        ]
      },
      {
        "name": "normalPointSelection",
        "value": null,
        "on": [
          {"events": "@nodes:click", "update": "datum.depth === 1 ? {'@{fields.level_1.name}': [datum.label]} : datum.depth === 2 ? {'@{fields.level_2.name}': [datum.label]} : datum.depth === 3 ? {'@{fields.level_3.name}': [datum.label]} : null"},
          {"events": "click[!event.item]", "update": "null"}
        ]
      },
      {
        "name": "hoverPointSelection",
        "value": null,
        "on": [
          {"events": "@nodes:mouseover", "update": "datum.depth === 1 ? {'@{fields.level_1.name}': [datum.label]} : datum.depth === 2 ? {'@{fields.level_2.name}': [datum.label]} : datum.depth === 3 ? {'@{fields.level_3.name}': [datum.label]} : null"},
          {"events": "@nodes:mouseout", "update": "null"}
        ]
      }
    ],
    "holisticsConfig": {
      "crossFilterSignals": ["normalPointSelection"],
      "contextMenuSignals": ["hoverPointSelection"]
    },
    "data": [
      {
        "name": "tree",
        "values": @{values},
        "transform": [
          {"type": "formula", "expr": "datum['@{fields.level_1.name}'] == null ? '' : '' + datum['@{fields.level_1.name}']", "as": "l1"},
          {"type": "formula", "expr": "datum['@{fields.level_2.name}'] == null ? '' : '' + datum['@{fields.level_2.name}']", "as": "l2"},
          {"type": "formula", "expr": "datum['@{fields.level_3.name}'] == null ? '' : '' + datum['@{fields.level_3.name}']", "as": "l3"},
          {"type": "filter", "expr": "datum.l1 !== ''"},
          {
            "type": "formula",
            "as": "node_arr",
            "expr": "[{id: '__root__', parent: null, label: '@{options.root_label.value}'}, {id: '1§' + datum.l1, parent: '__root__', label: datum.l1}, (datum.l2 !== '' ? {id: '2§' + datum.l1 + '§' + datum.l2, parent: '1§' + datum.l1, label: datum.l2} : null), (datum.l2 !== '' && datum.l3 !== '' ? {id: '3§' + datum.l1 + '§' + datum.l2 + '§' + datum.l3, parent: '2§' + datum.l1 + '§' + datum.l2, label: datum.l3} : null)]"
          },
          {"type": "flatten", "fields": ["node_arr"], "as": ["node"]},
          {"type": "filter", "expr": "datum.node != null"},
          {"type": "formula", "expr": "datum.node.id", "as": "node_id"},
          {"type": "formula", "expr": "datum.node.parent", "as": "parent_id"},
          {"type": "formula", "expr": "datum.node.label", "as": "label"},
          {"type": "aggregate", "groupby": ["node_id", "parent_id", "label"]},
          {"type": "stratify", "key": "node_id", "parentKey": "parent_id"},
          {
            "type": "tree",
            "method": {"signal": "layout"},
            "size": [1, {"signal": "radius"}],
            "as": ["alpha", "radius", "depth", "children"]
          },
          {"type": "formula", "expr": "(rotate + extent * datum.alpha + 270) % 360", "as": "angle"},
          {"type": "formula", "expr": "PI * datum.angle / 180", "as": "radians"},
          {"type": "formula", "expr": "inrange(datum.angle, [90, 270])", "as": "leftside"},
          {"type": "formula", "expr": "originX + datum.radius * cos(datum.radians)", "as": "x"},
          {"type": "formula", "expr": "originY + datum.radius * sin(datum.radians)", "as": "y"}
        ]
      },
      {
        "name": "links",
        "source": "tree",
        "transform": [
          {"type": "treelinks"},
          {
            "type": "linkpath",
            "shape": {"signal": "links"},
            "orient": "radial",
            "sourceX": "source.radians",
            "sourceY": "source.radius",
            "targetX": "target.radians",
            "targetY": "target.radius"
          }
        ]
      }
    ],
    "scales": [
      {
        "name": "color",
        "type": "linear",
        "range": {"scheme": @{options.color_scheme.value}},
        "domain": {"data": "tree", "field": "depth"},
        "zero": true
      }
    ],
    "marks": [
      {
        "type": "path",
        "from": {"data": "links"},
        "encode": {
          "update": {
            "x": {"signal": "originX"},
            "y": {"signal": "originY"},
            "path": {"field": "path"},
            "stroke": {"value": "#d0d5dd"},
            "strokeWidth": {"value": 1}
          }
        }
      },
      {
        "name": "nodes",
        "type": "symbol",
        "from": {"data": "tree"},
        "encode": {
          "enter": {
            "size": {"value": 90},
            "stroke": {"value": "white"},
            "strokeWidth": {"value": 1}
          },
          "update": {
            "x": {"field": "x"},
            "y": {"field": "y"},
            "fill": {"scale": "color", "field": "depth"},
            "size": {"signal": "datum.node_id === hovered ? 200 : 90"},
            "tooltip": {
              "signal": "{'Label': datum.label, 'Depth': datum.depth, 'Children': length(datum.children || [])}"
            }
          }
        }
      },
      {
        "type": "text",
        "from": {"data": "tree"},
        "interactive": false,
        "encode": {
          "enter": {
            "text": {"field": "label"},
            "fontSize": {"value": 10},
            "baseline": {"value": "middle"},
            "fill": {"value": "#374151"}
          },
          "update": {
            "x": {"field": "x"},
            "y": {"field": "y"},
            "dx": {"signal": "(datum.leftside ? -1 : 1) * 7"},
            "angle": {"signal": "datum.leftside ? datum.angle - 180 : datum.angle"},
            "align": {"signal": "datum.leftside ? 'right' : 'left'"},
            "opacity": {"signal": "labels ? 1 : 0"}
          }
        }
      }
    ]
  };;
}

Required fields​

A Radial Tree expects up to three fields, all dimensions. level_1 is required; level_2 and level_3 are optional, so a branch can stop early when a deeper level is null. Each row contributes one path from the root down through its non-null levels.

FieldLabelTypeRole
level_1Level 1dimensionFirst branch under the root (required). Sorted ascending (apply_order: 1).
level_2Level 2dimensionSecond branch under Level 1 (optional). Sorted ascending (apply_order: 2).
level_3Level 3dimensionOutermost branch under Level 2 (optional). Sorted ascending (apply_order: 3).

Data requirements: No measure is needed; the template builds the tree from the level columns alone, and node positions do not depend on any value. The template drops rows with a null or empty level_1 and collapses duplicate node paths, so you don't need to pre-aggregate. Each child should roll up to a single parent across the columns, otherwise the same label appears under multiple branches.

Sample data:

level_1level_2level_3
ElectronicsPhonesiPhone
ElectronicsPhonesAndroid
ElectronicsLaptopsMacBook
ApparelShirtsT-shirt
ApparelShirtsPolo
Services

Options​

Set these options to adjust the layout without editing the Vega template. The CustomChartDef block above declares each option's type and allowed values.

OptionDefaultEffect
root_labelAllText shown on the central root node that all Level 1 branches connect to.
layouttidyTree layout algorithm. tidy spaces nodes by structure; cluster aligns all leaf nodes at the same outer radius.
link_shapecurveStyle of the connecting links between nodes.
spread360Angular span the tree fans across, in degrees. 360 is a full circle; lower values open a wedge.
show_labelstrueToggles the text label next to each node.
color_schemebluesSequential color scheme used to shade nodes by their depth from the root.

Known limitations​

  • Three levels maximum. The template reads only level_1 through level_3. Deeper hierarchies need extra level columns and matching node logic added to the template.

  • Nodes are not sized by value. Every node is the same size and color encodes depth, not magnitude. Use a Treemap or Sunburst Chart when arc or area should reflect a measure.

  • Each child must roll up to one parent. A label that appears under more than one parent renders as separate nodes, which misrepresents the hierarchy. Make sure the level columns form a clean tree.
