Azure Blob Schedules

Note

This feature will be enabled only for version 2.0, 2.5 and 2.7. Refer to this doc to check your product version.

Using Azure Storage schedules to send your report to your Azure Blob Storage.

Some common use cases:

  • Backup report data periodically to an Azure Blob Storage server
  • Deliver data regularly to your partners' servers

How It Works

This section describes how you can set up Holistics to export report data to your Azure Blob Storage schedule.

Configuring Azure Blob Integration

To manage your Azure Blob Storage connections, please visit Integrations Page

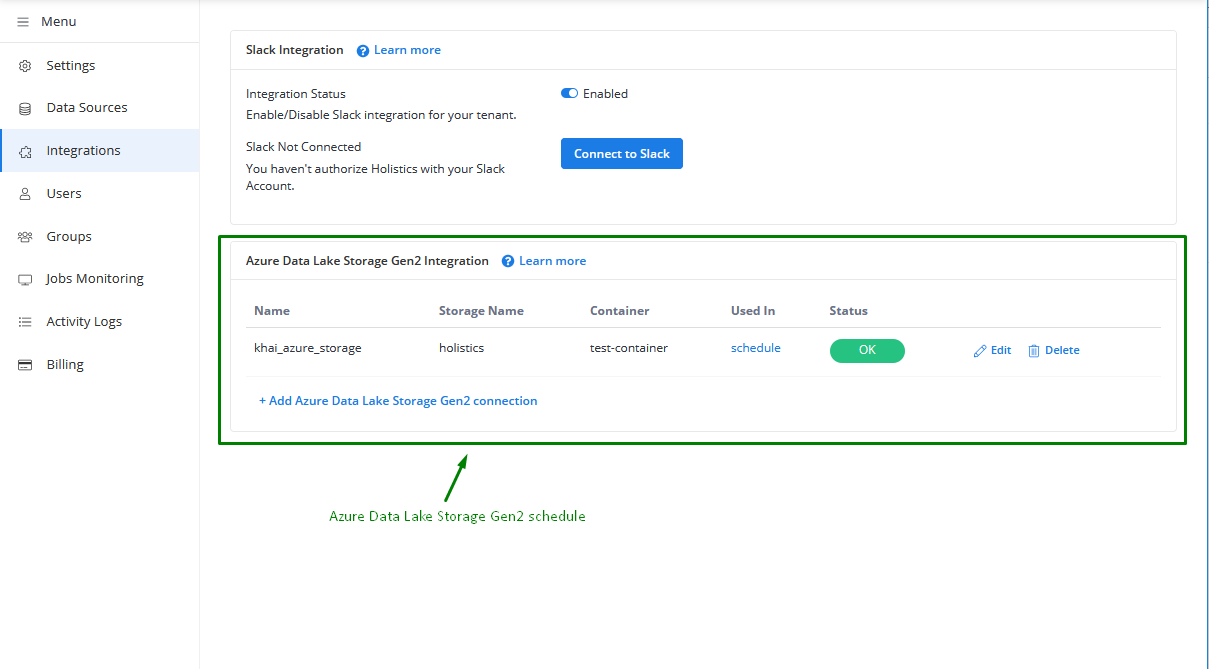

Azure Blob integration

To add a new Azure Blob Storage connection, click Add Azure Blob Storage and fill in the required information below

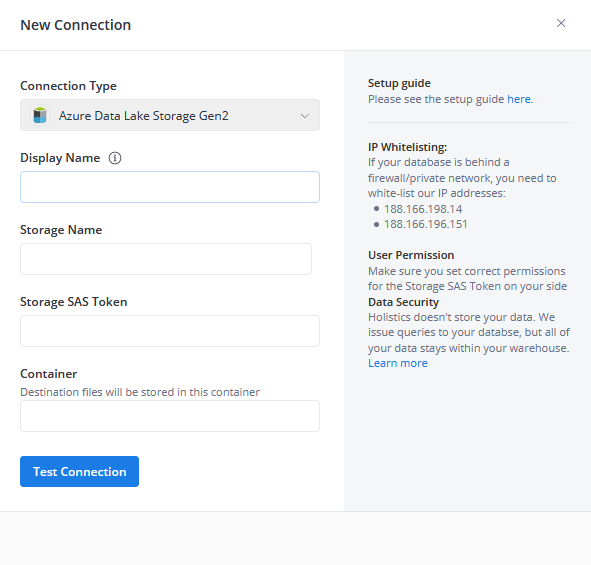

Azure Blob connection

  • Display name: Add integration title to manage your different connections
  • Storage Name: Your storage account name
  • Storage SAS: Token: Shared Access Signature token to access your storage. See below for more information about the permission.
  • Container: All your files will be stored in this container

Azure Blob Storage User Permissions

We need at least the CREATE/WRITE blob permission.

If possible, please give us permission to delete blob to delete temporary file created by Holistics for connection test.

Setup an Azure Blob Schedule

In any report, click Schedules on the toolbar, then choose New Azure Blob Schedules

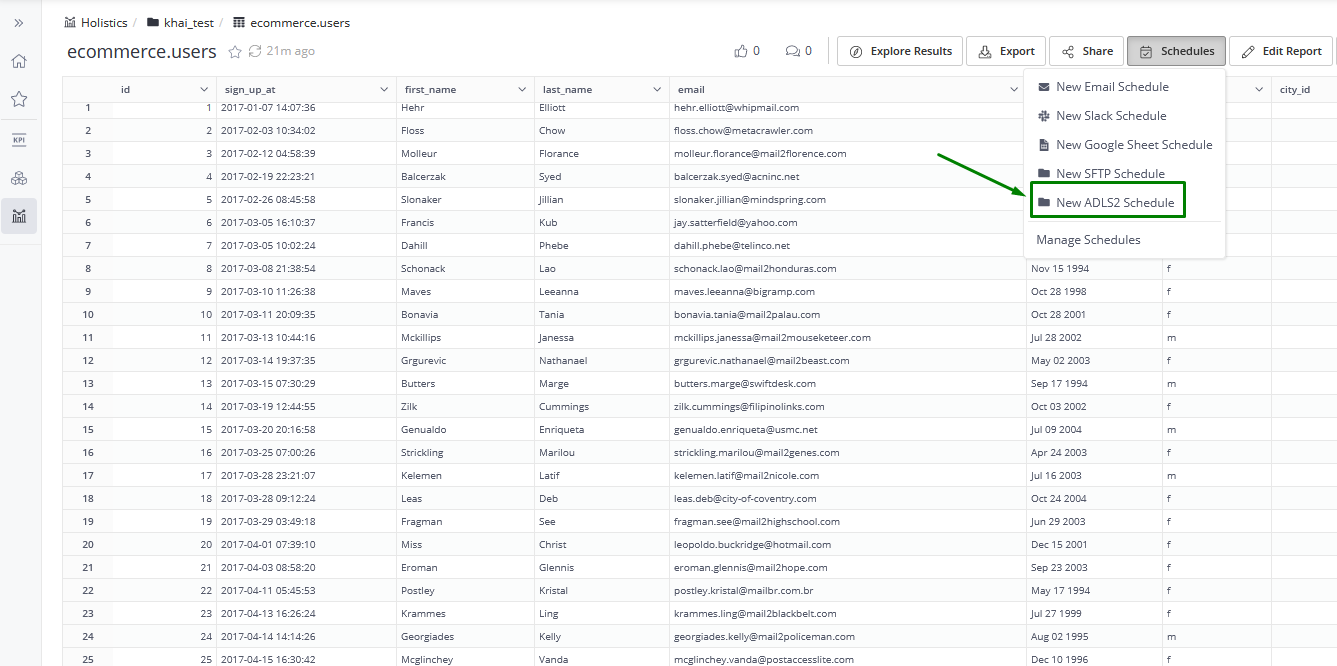

Create schedule

Then fill in the required information below for your schedule export

  • Azure Blob Connection: Choose the connection you want to create an export schedule, you can manage it at Integrations Page
  • File path: The path of the destination file. Holistics will create folders/files if they do not exist. Otherwise, that file will be overwritten (CSV/Excel files are supported)
  • Schedule: Monthly/Weekly/Daily/Hourly...
  • Filter Values: Set the filter values for the report

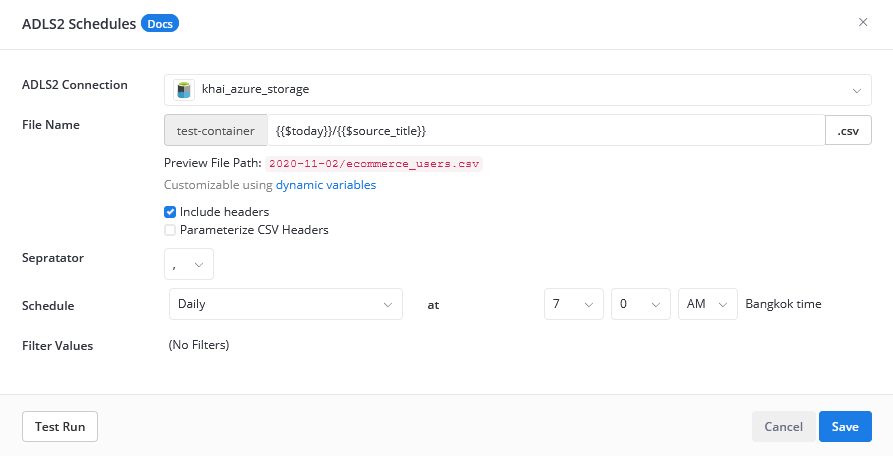

Schedule

Writing Sequential Files

Sometimes when writing to the destination, you want the system to add new files (based on date/timestamp) instead of overwriting existing files.

{{$today}}/{{$source_title}}_{{$timestamp}}.xlsx

The above will produce filenames like:

  • 2017-05-06/sales_pivo_t_table_1494106200.xlsx
  • 2017-05-07/sales_pivo_t_table_1614106200.xlsx

The variables you can use are:

  • $today, $yesterday: Today or yesterday in YYYY-MM-DD
  • $timestamp: Unix timestamp
  • $source_title: Title of the report, in lowercase and has its special characters replaced by underscores. E.g. '[email protected]^*?t Table' -> 'sales_pivo_t_table'

Azure Blob Schedule Execution Flow

An Azure Blob Schedule execution follows these steps:

  1. Execute the Query Report to get result data
  2. Move the file (storing the result data) to the destination path of the container.
