Aggregate Awareness

Open Beta

Aggregate Awareness is now in open beta.

You can also read the announcement blog post.

Aggregate Awareness is a query performance optimization functionality by Holistics. It inspects the query sent from Holistics BI and intelligently rewrites the query to use the smaller, pre-aggregated tables instead of the raw tables.

This results in fewer rows scanned, hence improving both performance & cost while maintaining query accuracy.

The aggregated tables can be either built using Aggregate Awareness, or using external transformation tools (dbt, Airflow, Dagster).

Glossary

Before we dive deeper into aggregate awareness, let’s build the foundation and align on the same page with some basic terms

• Pre-aggregate is the aggregation performed and prepared prior to the query time, producing a condensed version of source data with just enough information that needs to be used frequently. This helps reduce the size of the data and improves the query performance.
• Pre-aggregated table is the output of the pre-aggregate process.
• Aggregate Awareness is the capability of automatically identifying eligible pre-aggregates and substituting them into queries, making the queries use smaller pre-aggregated tables while still producing accurate results.
• Granularity is a term that describes the level of detail or complexity of a set of data.
  • Coarse-grained (or low) granularity includes the data set having less detail with a grasp overview frequently used for quick analysis.
  • Fine-grained (or high) granularity, in contrast, includes the data set having more detail frequently used for in-depth analysis or at the execution level.
  • For example:
    • month has coarser-grained (lower) granularity than day
    • (country, city) has finer-grained (higher) granularity than (country)

How It Works

KNOWLEDGE CHECKPOINT

You should know the concepts of Data Model and Dataset.

To make Holistics Aggregate Awareness know which pre-aggregate can be used in the query, there are two jobs to be done:

• Define the Pre-Aggregate in the dataset to map between the raw tables/models and the pre-aggregated table.
• Create the pre-aggregated table by using either
  • The external tools (like dbt, Airflow, etc.) or
  • The built-in persistence option in Holistics

When your query is intended to use the original tables, Holistics will automatically pick the right pre-aggregated tables having enough information to answer the data question.

Therefore, instead of processing millions of millions of records, it only needs fewer than that, leading to faster results.

Quick Example

Background

Assume we’re working with the following raw_transactions table and a model on top of it residing in an ecommerce dataset

// ---------- Modeling Layer ----------

Dataset ecommerce {
  //... other dataset settings
  models: [transactions]
}

Model transactions {
  dimension id
  measure count_transactions { // a custom measure definition
    label: 'Count Transactions'
    type: 'number'
    definition: @aql count(transactions.id)
  }
  //... other fields' definitions

  table_name: 'raw_transactions'
}

// ---------- Database ----------

Table raw_transactions {
  id integer [PK]
  user_id integer [ref: > users.id]
  product_id integer [ref: > products.id]
  merchant_id integer [ref: > merchants.id]
  status varchar
  city varchar
  country varchar
  order_value double
  created_at timestamp
}

Given that, we know the common queries with this table are:

• Count transactions by day, week, month
• Count transactions by status, country, city

This table is relatively big (billions of records). So, we know these analytical queries would take time.

Create Pre-aggregated Table

A good approach is to build a pre-aggregated table on the frequently used dimensions and measures to reduce the number of records

// Create pre-aggregated table agg_transactions

SELECT
  created_at::date as created_at_day,
  status,
  country,
  city,
  COUNT(1) as count_transactions
FROM raw_transactions
GROUP BY 1, 2, 3, 4

// ---------- Database - Schema: `persisted` ----------

Table agg_transactions {
  created_at_day date
  status varchar
  country varchar
  city varchar
  count_transactions integer
}

Map Pre-aggregated Table with Model

After that, we use pre-aggregate to define which model dimensions & measures are equivalent to the respective pre-aggregated table fields

Dataset ecommerce {
  //... other dataset settings
  models: [transactions]

  // ----- BEGIN NEW CODE - Add pre-aggregate
  pre_aggregates: {
    agg_transactions: PreAggregate {
      // This dimension is in the pre-aggregated table `agg_transactions`
      dimension created_at_day {
        // This reference is in the `transactions` model
        for: ref('transactions', 'created_at'),
        time_granularity: "day"
      }
      dimension status {
        for: ref('transactions', 'status')
      }
      dimension country {
        for: ref('transactions', 'country')
      }
      dimension city {
        for: ref('transactions', 'city')
      }
      measure count_transactions {
        for: ref('transactions', 'id')
        aggregation_type: 'count'
      }
      persistence: FullPersistence {
        schema: 'persisted'
      }
    },
  }
  // ----- END NEW CODE
}

The Results

When querying and exploring data, analysts and explorers only work with a single transactions model. They shouldn’t need to have knowledge about the underlying aggregation optimizations.

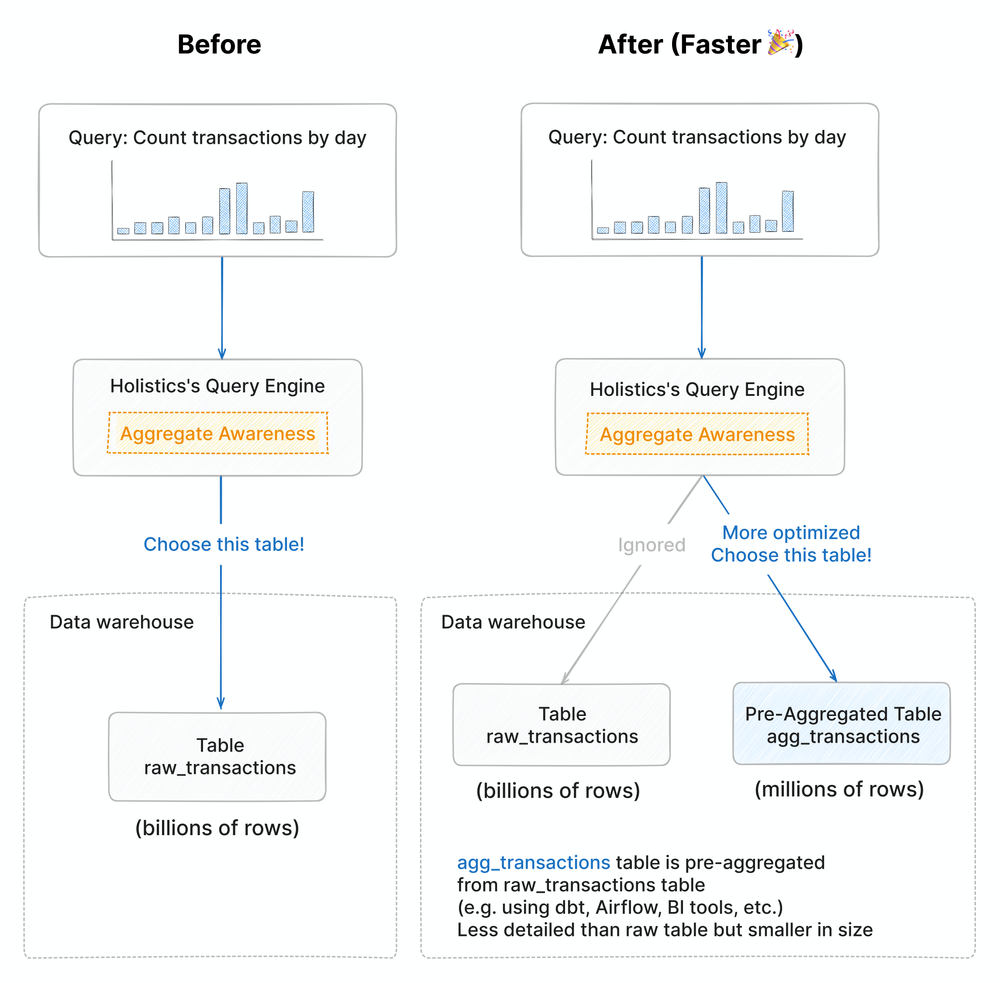

With Aggregate Awareness, Holistics can automatically choose the right underlying table to query based on the dimensions of the query. The mechanism in Holistics’s Query Engine might be conceptually like the following:
