Themes in Canvas Dashboard

Introduction

Themes in Canvas Dashboard allow greater control over the styling and visual appearance of your dashboards. This feature lets you customize a wide range of elements, including:

• Typography: Modify the font family, font size of text and data labels
• Colors: Customize the color of dashboard backgrounds, borders, and other elements
• Canvas & block styling: Add paddings, shadows, or even use custom images as backgrounds
• Visualization styling:
  • Table visualization: Customize font size, color, and borders of your table visualizations.

With Themes, you can easily create visually appealing dashboards, align your dashboard's color scheme with your branding, and even design dark-themed dashboards.

How it works

Canvas Dashboard Themes comprises 4 main levels: Page Theme, Canvas Theme, Block Theme and Viz Theme. Each level allows for the definition of its associated properties. (See Syntax References for details.)

Page Theme

Control the styling of the outermost container of the Canvas (the viewport surrounding the entire canvas area). Customizable Properties: Background color

Canvas Theme

Control the styling of the primary reporting area that contains all dashboard blocks. Customizable Properties: Background, border, shadow, opacity

Block Theme

Control the styling of analytics blocks.

Customizable Properties:

• Label (block title)
• Text font styles
• Border
• Background
• Shadow
• Padding
• Opacity

Viz Theme

Defines the styling for data visualizations.

• Table Theme: Styling for table-based visualizations, including: Data Table, Pivot Table, Metric Sheet.
  • Customizable Properties:
    • General styling: background, font styles, hover color, banding color, border, grid lines color.
    • Headers
    • Sub-headers
    • Subtitles
• (Coming soon) Other visualization type themes: Column charts, Line charts, Pie charts, etc.

Note

Table Theme has an override mechanism for better controlling table styling: General styling is overridden by headers, sub-headers, and subtitles, in that order.

Applying themes

Note

This feature is only available when building dashboards in Development. It won't be visible in Reporting edit mode.

You can apply themes to your canvas dashboard by either writing codes or using GUI.

For GUI option, simply open Themes Setting at the top right corner of your dashboard. From there, you can choose between using the pre-built themes, or creating your new custom theme.

Use pre-built themes

There are two types of pre-built themes:

• Built-in themes: Themes provided by Holistics
• Custom themes: Themes created and saved by you and your colleagues.

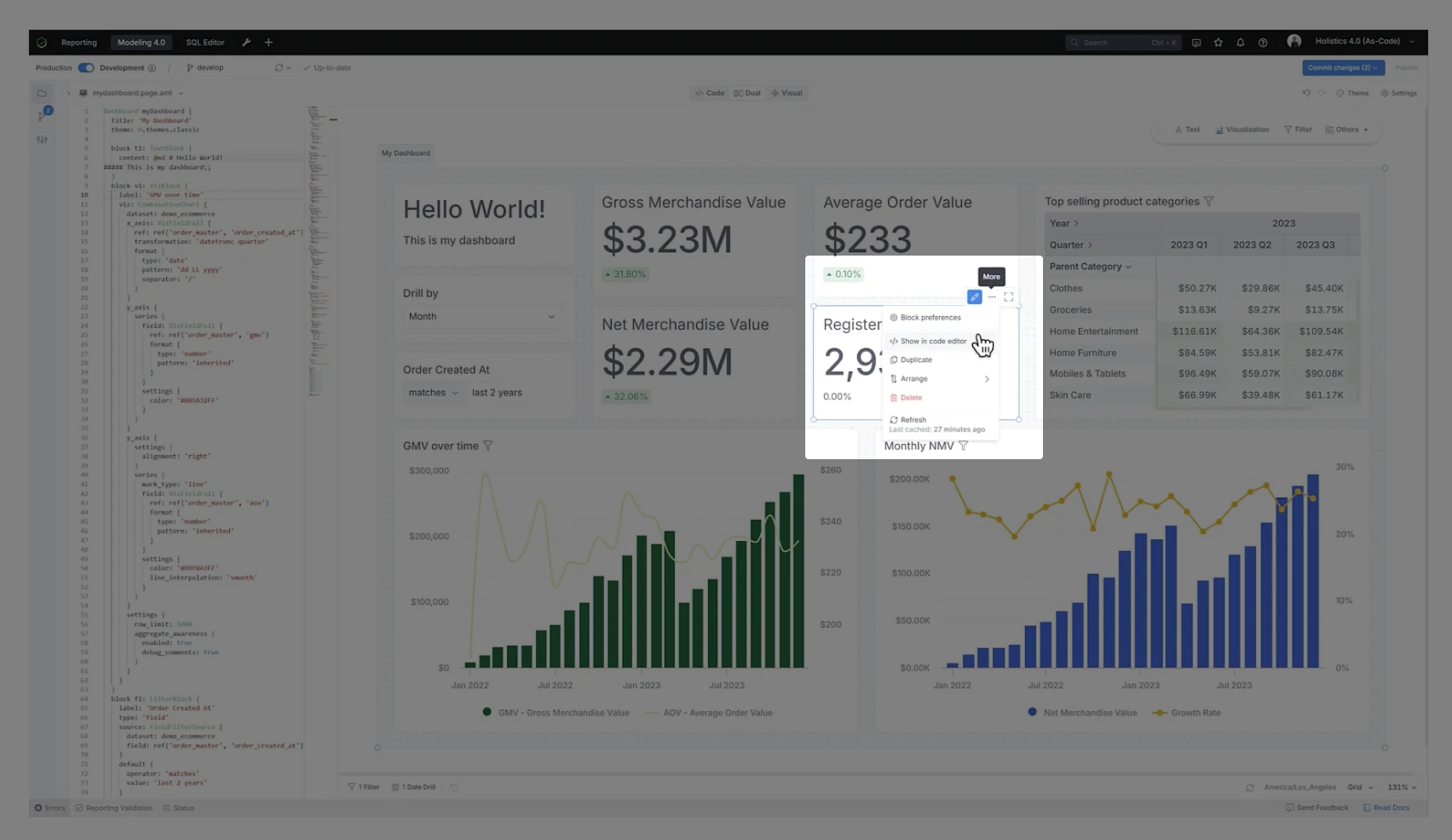

Modify the selected Theme

For cases where you want to style a specific block quickly or override the global dashboard theme for a block, you can then directly define the theme inside a block:

Dashboard ecommerce_dashboard {
  block text_block: TextBlock {
    ...
    theme: BlockTheme {
      background {
        bg_color: 'transparent'
      }
    }
  }
}

Another example is overriding at the VizTheme level:

Dashboard ecommerce_dashboard {
block viz_block: VizBlock {
    ...
    viz: PivotTable {
    ...
      theme: VizTheme {
        table {
          general {
            bg_color: 'white'
          }
        }
      }
    }
}

Create your new custom themes

In the dashboard code definition, themes are specified using the theme parameter at different levels to provide more granular customization.

• Page Theme: Properties that apply to the entire canvas dashboard page
• Block Theme: Properties that apply to individual blocks, overriding the Page Theme settings
• Visualization Theme (Viz Theme): Properties that apply to the data visualization in visualization blocks.
  • Table Theme: Properties that apply to Table family visualizations (Data Table, Pivot Table and Metric Sheet).

Step-by-step Guide

To create a reusable custom theme, simply follow these steps:

• Step 1: Declare a reusable variable for the PageTheme using AML Constant.
• Step 2: Apply the Custom Theme from the Themes menu; or call the variable at the dashboard's theme parameter.

Best Practice

While reusable themes can be declared anywhere in your project, we recommend organizing them in a separate file (e.g. themes.aml) for better management.

ecommerce_dashboard.page.aml

Dashboard ecommerce_dashboard {
  title: "eCommerce dashboard"

  theme: classic_blue
  ...
}

themes.aml

PageTheme classic_blue {
  background {
    bg_color: "#FFFFFF"
    bg_repeat: false
    bg_size: "cover"
    // bg_image:
  }
  canvas {
    border {
      border_radius: 4
      border_width: 1
      border_color: "#4896EA"
      border_style: "solid"
    }
    background {
      bg_color: "#D1E5FA"
      bg_repeat: false
      bg_size: "cover"
      // bg_image:
    }
    shadow: "none"
    opacity: 1
  }
  // Block Theme
  block {
    label {
      font_family: "Inter"
      font_size: 14
      font_color: "#1357A0"
      font_weight: "medium"
      font_style: "normal"
    }
    text {
      font_family: "Inter"
      font_size: 12
      font_color: "#1357A0"
      font_weight: "normal"
      font_style: "normal"
    }
    border {
      border_width: 1
      border_radius: 8
      border_color: "#4896EA"
      border_style: "solid"
    }
    background {
      bg_color: "#E8F2FD"
      bg_repeat: false
      bg_size: "cover"
      // bg_image:
    }
    padding: 12
    shadow: "none"
    opacity: 1
  }
  //Viz Theme
  viz {
    // Table Theme
    table {
      general {
        bg_color: 'white'
        hover_color: '#C8DCF2'
        banding_color: '#EAF5FC'
        font_size: 12
        font_color: '#505D6A'
        font_family: 'Arial'
        border_color: '#90A2B7'
        border_width: 1
        grid_color: '#90A2B7'
      }
      header {
        bg_color: '#608EC3'
        font_size: 12
        font_color: 'white'
        font_weight: 'bold'
      }

      // Pivot table properties
      sub_header {
        bg_color: '#AECEF2'
        font_size: 12
        font_color: '#505D6A'
        font_weight: 'bold'
      }

      // Metric Sheet properties
      sub_title {
        font_size: 12
        font_color: '#505D6A'
        font_weight: 'bold'
      }
    }
  }
}

The Result

Advanced Features

Custom CSS

You can add snippets of CSS directly within your theme definitions using the new custom_css parameter:

PageTheme classic {
  // existing theme properties
  custom_css: @css
    /* your custom CSS rules here */
  ;;
}

Define your CSS once in your theme and reuse it across multiple dashboards that apply the same theme. The CSS rules are scoped to only apply to elements inside the canvas dashboard area, preventing any interference with the rest of the application.

Reusing themes with AML Reusability

You can use AML Reusability features to make it easier to modify and reuse themes. For examples:

Make it easier to change color and font family without worrying about consistency

const classic_blue_border_color = "#4896EA"
const classic_blue_font_color = "#1357A0"
const classic_blue_font_family = "Inter"

PageTheme classic_blue {
  // other properties omitted...
  canvas {
    border {
      // other properties omitted...
      border_color: classic_blue_border_color
    }
  }
  block {
    // other properties omitted...
    label {
      // other properties omitted...
      font_family: classic_blue_font_family
    }
    text {
      // other properties omitted...
      font_family: classic_blue_font_family
    }
    border {
      // other properties omitted...
      border_color: classic_blue_border_color
    }
  }
}

Use AML Dict to avoid polluting project namespace

// Instead of separate constant for each variable
// const classic_blue_border_color = "#4896EA"
// const classic_blue_font_color = "#1357A0"
// const classic_blue_font_family = "Inter"

// You can use an AML Dict instead
const classic_blue_vars = {
    border_color: "#4896EA"
    font_color: "#1357A0"
    font_family: "Inter"
}
// then use it like this
PageTheme classic_blue {
  // other properties omitted...
  canvas {
    border {
      // other properties omitted...
      border_color: classic_blue_vars("border_color")
    }
  }
}

Syntax Reference

tip

Hover over PageTheme, BlockTheme or VizTheme in the code editor to see suggestions for available parameters.

Parameter	Description	Accepted Values
Background
background.bg_color	Set the background color for the page	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
background.bg_image	Set the background image for the page	Any valid CSS <image> values e.g. "https://docs.holistics.io/img/logo.png", "linear-gradient(blue, red)"
background.bg_repeat	Determine how the background image repeats	false, true, "x", "y", "space", "round"
background.bg_size	Determine how the background image is sized	"cover", "contain"
Canvas
canvas.border.border_width	Set the width of the canvas border	Number, String, or DetailedSpacing
canvas.border.border_radius	Set the roundness of the canvas corners	Number, String, or DetailedRadius
canvas.border.border_color	Set the color of the canvas border	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
canvas.border.border_style	Set the style of the canvas border	"none", "solid", "dotted", "dashed", "inset", "outset", "ridge", "groove", "double"
canvas.background.bg_color	Set the background color of the canvas	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
canvas.background.bg_image	Set the background image of the canvas	Any valid CSS <image> values e.g. "https://docs.holistics.io/img/logo.png", "linear-gradient(blue, red)"
canvas.background.bg_repeat	Determine how the background image repeats	false, true, "x", "y", "space", "round"
canvas.background.bg_size	Determine how the background image is sized	"cover", "contain"
canvas.shadow	Sets the shadow effect of the canvas	"none", "sm", "md", "lg"
canvas.opacity	Set the opacity of the canvas	Number between 0 and 1
Block
block.label.font_family	Set the font family for block labels/titles	Web-safe fonts or Custom fonts. Learn more e.g. "Inter", "Arial, sans-serif", "serif"
block.label.font_size	Set the font size for block labels/titles	Any valid CSS <length> values e.g. 14, "14px", "2em"
block.label.font_color	Set the font color for block labels/titles	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
block.label.font_weight	Set the font weight for block labels/titles	"light", "normal", "medium", "semibold", "bold", "extrabold"
block.label.font_style	Set the font style for block labels/titles	"normal", "italic"
block.text.font_family	Set the font family for block text content	Web-safe fonts or Custom fonts. Learn more e.g. "Inter", "Arial, sans-serif", "serif"
block.text.font_size	Set the font size for block text content	Any valid CSS <length> values e.g. 14, "14px", "2em"
block.text.font_color	Set the font color for block text content	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
block.text.font_weight	Set the font weight for block text content	"light", "normal", "medium", "semibold", "bold", "extrabold"
block.text.font_style	Set the font style for block text content	"normal", "italic"
block.border.border_width	Set the width of block borders	Number, String, or DetailedSpacing
block.border.border_radius	Set the roundness of block corners	Number, String, or DetailedRadius
block.border.border_color	Set the color of block borders	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
block.border.border_style	Set the style of block borders	"none", "solid", "dotted", "dashed", "inset", "outset", "ridge", "groove", "double"
block.background.bg_color	Set the background color of blocks	Any valid CSS <color> values e.g. "rebeccapurple", "#ff0099", "rgb(255 0 153)"
block.background.bg_image	Set the background image of blocks	Any valid CSS <image> values e.g. "https://docs.holistics.io/img/logo.png", "linear-gradient(blue, red)"
block.background.bg_repeat	Determine how the background image repeats	false, true, "x", "y", "space", "round"
block.background.bg_size	Determine how the background image is sized	"cover", "contain"
block.padding	Set the internal padding of blocks	Number, String, or DetailedSpacing
block.shadow	Set the shadow effect of blocks	"none", "sm", "md", "lg"
block.opacity	Set the opacity of blocks	Number between 0 and 1
Table Visualization
general.bg_color	Sets the background color for the table body	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.hover_color	Set the hover background color for table rows	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.banding_color	Set the color for the odd rows	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.font_size	Set the font size for all text in the table	Number or String (e.g., "14px")
general.font_color	Set the font color for all text in the table	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.font_family	Set the font family for all text in the table	Any valid font family name
general.border_color	Set the color for the table's outer bounding border	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.grid_color	Set the color for table’s grid lines	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
general.border_width	Set the thickness for all the table borders and grid lines	Number or String (e.g., "14px")
header.bg_color	Sets the background color for the table header	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
header.font_size	Set the font size for table header	Number or String (e.g., "14px")
header.font_weight	Set the font weight for table header	'light', 'normal', 'medium', 'semibold', 'bold', 'extrabold'
header.font_color	Set the font color for table header	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
sub_header.bg_color	Sets the background color for the subheader of the Pivot Table	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
sub_header.font_size	Sets the font size for the subheader of the Pivot Table	Number or String (e.g., "14px")
sub_header.font_weight	Sets the font weight for the subheader of the Pivot Table	'light', 'normal', 'medium', 'semibold', 'bold', 'extrabold'
sub_header.font_color	Sets the font color for the subheader of the Pivot Table	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
sub_title.font_size	Sets the font size for the Metric Sheet column header’s subtitle	Number or String (e.g., "14px")
sub_title.font_weight	Sets the font weight for the Metric Sheet column header’s subtitle	'light', 'normal', 'medium', 'semibold', 'bold', 'extrabold'
sub_title.font_color	Sets the font color for the Metric Sheet column header’s subtitle	Any valid color value (e.g., "#FFFFFF", "rgb(255, 255, 255)")
Custom CSS
custom_css	Set the custom CSS for entire dashboard	Any valid CSS code

DetailedSpacing

Used for specifying different spacing values for each side of an element.

Property	Description	Type
top	Spacing for the top side	Number or String
left	Spacing for the left side	Number or String
bottom	Spacing for the bottom side	Number or String
right	Spacing for the right side	Number or String

Example:

{
  top: 10,
  left: "5px",
  bottom: 10,
  right: "5px"
}

DetailedRadius

Used for specifying different border-radius values for each corner of an element.

Property	Description	Type
top_left	Radius for the top-left corner	Number or String
top_right	Radius for the top-right corner	Number or String
bottom_left	Radius for the bottom-left corner	Number or String
bottom_right	Radius for the bottom-right corner	Number or String

Example:

{
  top_left: 5,
  top_right: "10px",
  bottom_left: 5,
  bottom_right: "10px"
}
