Dynamic Top N

knowledge checkpoint

A grasp of these concepts will help you understand this documentation better:

• Parameter Fields
• AQL Expression
• Top Function

Introduction

Using Parameter Fields, you can build charts that allow users to dynamically control how many top (or bottom) items to display. This is useful when users want flexibility in viewing top performers, outliers, or focusing on specific segments of their data.

Use Case: Top Buyers by Order Count

Suppose you have an e-commerce dataset and want to let users dynamically choose how many top buyers to display based on their total orders.

Pre-requisite: This example assumes you already have a users model with a full_name dimension and an orders model with a total_orders measure.

users.model.aml

Model users {
  ...
  dimension full_name {
    label: "Full Name"
    type: 'text'
  }
}

orders.model.aml

Model orders {
  ...
  measure total_orders {
    label: "Total Orders"
    type: 'number'
  }
}

Step 1: Create a Parameter Model

First, create a Query Model to hold your parameter field. This approach is useful when you want to reuse the parameter across multiple visualizations or when the parameter doesn't naturally belong to a specific data model.

param_model.model.aml

Model param_model {
  type: 'query'
  label: 'Param Model'
  data_source_name: 'your_datasource'

  query: @sql select 1 ;;

  param number_param {
    label: 'Top N'
    type: 'number'
  }
}

Step 2: Add Parameter Model to Your Dataset

Include the parameter model in your dataset alongside your data models.

ecommerce.dataset.aml

Dataset ecommerce {
  label: 'Ecommerce'
  data_source_name: 'your_datasource'

  models: [users, orders, param_model]

  relationships: [
    relationship(orders.user_id > users.id, true)
  ]
}

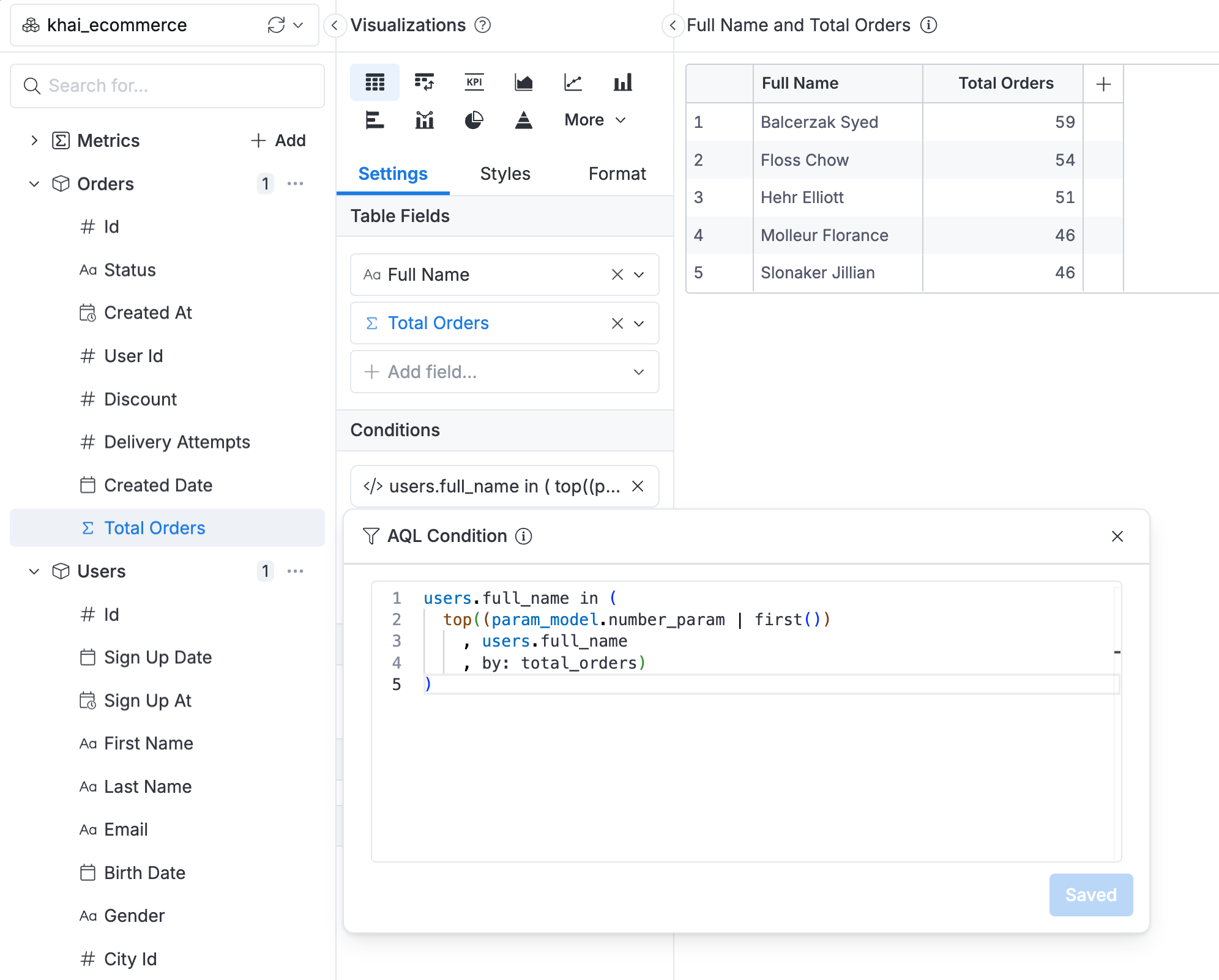

Step 3: Use Dynamic Top N in AQL Condition

In your visualization, use the AQL Condition to filter results to only show the top N users based on total orders.

explore {
  dimensions {
    full_name: users.full_name
  }
  measures {
    total_orders: orders.total_orders
  }
  filters {
    users.full_name in (
      top(
        (param_model.number_param | first())
        , users.full_name
        , by: orders.total_orders
      )
    )
  }
}

The top() function here:

• Takes the parameter value (param_model.number_param | first()) as N
• Returns the top N users.full_name values
• Ranks them by orders.total_orders in descending order

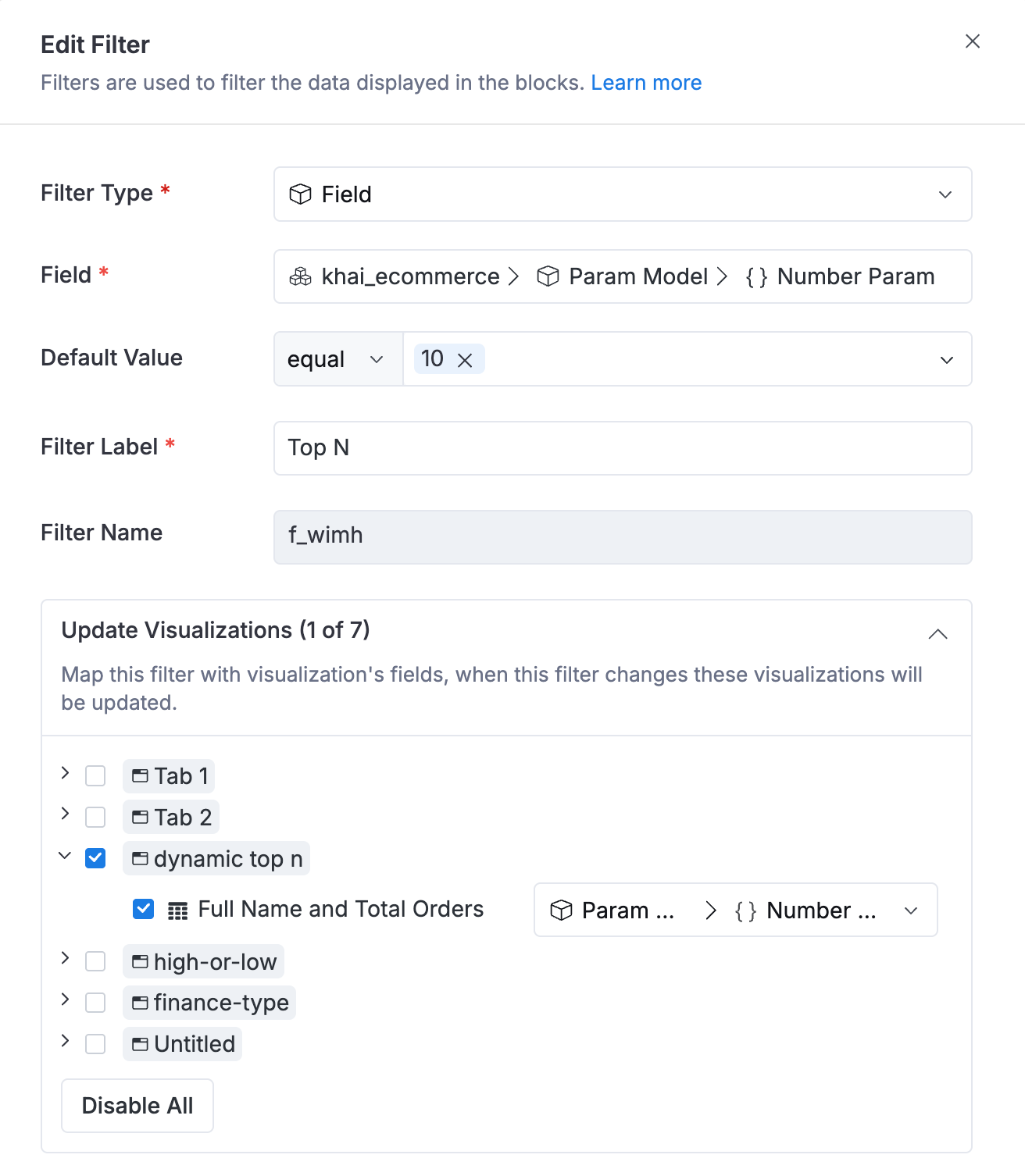

Step 4: Create Dashboard Filter

1. Add a dashboard filter linked to param_model.number_param
2. Users can now dynamically change how many top buyers are displayed
